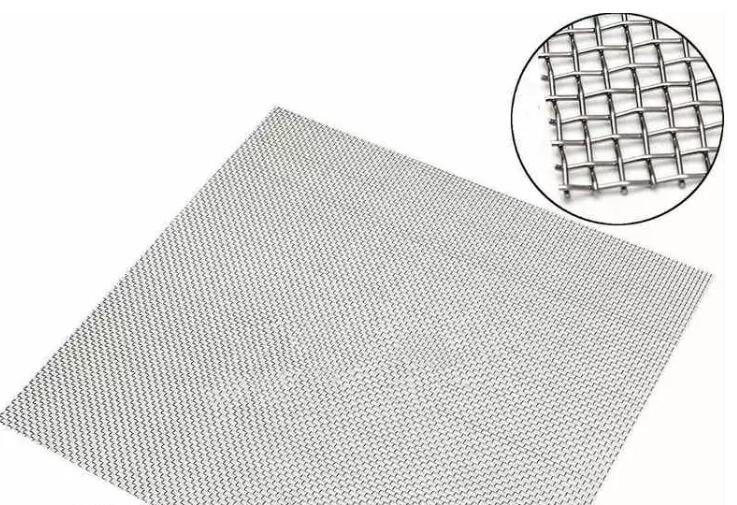

Plain Weave SS 304 316 304L Wire Mesh Filter Woven Filter Mesh For Classifying
Product Description
Material
Stainlesssteel ,copper ,brass ,phosphor-bronze ,and special alloys ,nickel wire mesh ,titanium wire mesh ,monel wire mesh ,molybdenum wire mesh ,tungsten wire mesh ,zirconium wire mesh ,tantalum wire mesh ,haynes wire mesh ,hastelloy wire mesh ,inconel wire mesh ,incoloy wire mesh ,nichrome wire mesh ,kanthal wire mesh
Mesh Openings
0.003 to 10mm (other specifications on request)
Wire Diameters
0.010 to 1.20mm (other specifications on request)
Widths
Up to 4000mm(Also can cut to 0.05—0.99m)
Weaving Types
Plain weave , twilled weave , plain dutch weave , twilled dutch weave , reverse plain dutch weave as well as reverse twilled dutch weave.
Specification
| Stainless Steel Wire Mesh |
| Mesh/inch | Wire Diameter
(mm) | Aperture
(mm) | | Mesh/inch | Wire diameter
(mm) | Aperture
(mm) |
| 2mesh | 1.80 | 10.90 | | 60mesh | 0.15 | 0.273 |
| 3mesh | 1.60 | 6.866 | | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.20 | 5.15 | | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.80 | 3.433 | | 100mesh | 0.10 | 0.154 |
| 8mesh | 0.60 | 2.575 | | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.990 | | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.40 | 1.188 | | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.060 | | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.30 | 0.970 | | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | | 400mesh | 0.025 | 0.0385 |
| Width of Stainless Steel Wire Mesh: 0.6m-8m |
Mesh count
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh
Weaving Type
Plain weave
Twill weave
Ren weave
Dutch weave
Reserve dutch weave
Five heddle weave
Application
- In acid, alkali environment conditions sieving and filtering.
- Petroleum industry as mud mesh,.
- Chemical fiber industry as screen mesh.
- Plating industry as acid cleaning mesh.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
